¡Grupo HJ, desde 1993! Su proveedor único de soluciones de tinplate.
Coating/lacquering/printing ETP <000000> TFS Sheet direct food contact
HJ GROUP leverages 28 state-of-the-art coating lines equipped with cutting-edge electrolytic tinplate (ETP) and tin-free steel (TFS) coating technologies to deliver tailored solutions for global brands. Our precision-engineered coatings enhance both performance and aesthetics, ensuring compliance with the highest industry standards.

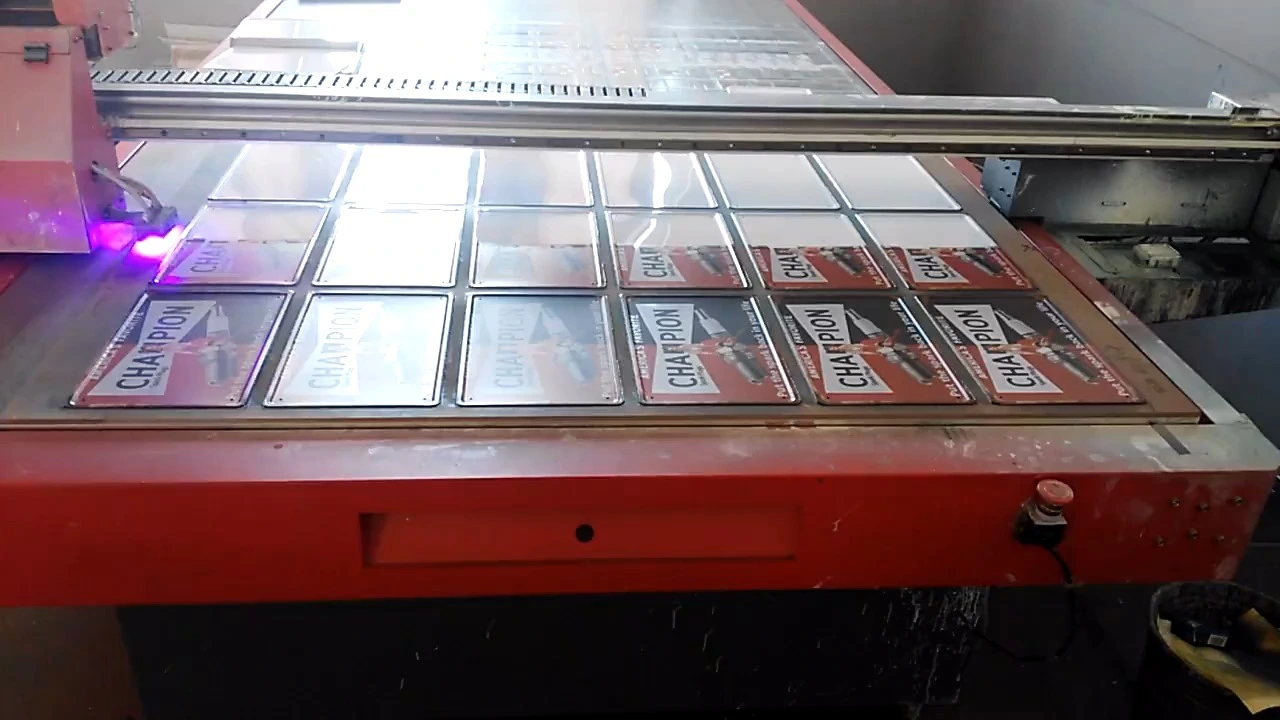

Printing Excellence
Backed by 25 German & Japanese printing lines with 2-6 color configurations, we offer:
● High-definition lithographic printing
● Customizable design capabilities
● UV-curable inks for vibrant finishes
● Food-grade compliance for packaging applications
Our integrated coating-printing system guarantees seamless production from coil to finished product, enabling rapid turnaround for demanding global supply chains.
Coating Options
Each coating is applied through proprietary processes that ensure uniform thickness, adhesion strength, and corrosion protection. Ideal for beverage cans, aerosol containers, and industrial components.
Supply Capacity and Packaging
Capacità di fornitura | 1500MT Monthly |
Packaging | Standard seaworthy export packing or custom required |
Specifiche del prodotto
Prodotto | Printed tinplate sheet | Spessore | 0.14-0.55mm |
Base Metal | Tinplate or TFS sheet | Width | 600-1050mm |
Internal Lacquer | White/ Gold/ Aluminium | Annealing | BA or CA |
External Printing | Printing/ Clear | Temper | T1-T5, DR7-DR9 |
Internal Strip Coating | White powder or custom | Coating | 1.1-15.1g/m2 or custom |
Applicazione | Food or other industry cans | CMYK off-set printing | |
Colore | CMYK/ PMS | Origin | Cina |
Tempi di consegna | 20-40 days | MOQ | 25MT |
Delivery Tolerance | +/-5% | HS code | 721090 |
Remark | Temper Grade | Hardness (HR30T) | Yield Strength (Mpa) | |
Single
| T-1 | TS230 | 49 ± 3 | 230 ±50 |
T-2 | TS245 | 53 ± 3 | 245 ±50 | |
T-2.5 | TS260 | 55 ± 3 | 260 ±50 | |
T-3 | TS275 | 57 ± 3 | 275 ±50 | |
T-3.5 | TS290 | 59 ± 3 | 290 ±50 | |
T-4 | TH415 | 61 ± 3 | 415 ±50 | |
T-5 | TH435 | 65 ± 3 | 435 ±50 | |
Double
| DR-7M | TH520 | 71 ± 5 | 520 ±50 |
DR-8 | TH550 | 73 ± 5 | 550 ±50 | |
DR-8M | TH580 | 73 ± 5 | 580 ±50 | |
DR-9 | TH620 | 76 ± 5 | 620 ±50 | |
DR-9M | - | 77 ± 5 | 660 ±50 | |
DR-10 | - | 80 ± 5 | 690 ±50 | |
Articolo | Former Coating | Coating Weight | Nominal Coating Weight | Minimum average |
Designation | Code | (g/m2) | (g/m2) | |
Equally Coated | 10# | 1.1/ 1.1 | 1.1/ 1.1 | 0.9/ 0.9 |
20# | 2.2/ 2.2 | 2.2/ 2.2 | 1.8/ 1.8 | |
25# | 2.8/ 2.8 | 2.8/ 2.8 | 2.5/ 2.5 | |
50# | 5.6/ 5.6 | 5.6/ 5.6 | 5.2/ 5.2 | |
75# | 8.4/ 8.4 | 8.4/ 8.4 | 7.8/ 7.8 | |
100# | 11.2/ 11.2 | 11.2/ 11.2 | 10.1/ 10.1 | |
Differentially Coated | 25#/ 10# | 2.8/ 1.1 | 2.8/ 1.1 | 2.5/ 0.9 |
50#/ 10# | 5.6/ 1.1 | 5.6/ 1.1 | 5.2/ 0.9 | |
50#/ 25# | 5.6/ 2.8 | 5.6/ 2.8 | 5.2/ 2.5 | |
75#/ 25# | 8.4/ 2.8 | 8.4/ 2.8 | 7.8/ 2.5 | |
75#/ 50# | 8.4/ 5.6 | 8.4/ 5.6 | 7.8/ 5.2 | |
100#/ 25# | 11.2/ 2.8 | 11.2/ 2.8 | 10.1/ 2.5 | |
100#/ 50# | 11.2/ 5.6 | 11.2/ 5.6 | 10.1/ 5.2 | |
100#/ 75# | 11.2/ 8.4 | 11.2/ 8.4 | 10.1/ 7.8 | |
125#/ 50# | 15.1/ 5.6 | 15.1/ 5.6 | 13.9/ 5.2 |
our advantages
HJ GROUP's premium TMBP is a cold-rolled, uncoated steel sheet designed for precision applications. Manufactured using advanced low-carbon steel formulations and state-of-the-art annealing processes
HJ GROUP leads the industry with advanced electrolytic chromium coating technology, delivering high-performance TFS for demanding global markets:
Key Features
● Corrosion Resistance: Chromium oxide layer (0.2-0.5g/m²) provides superior protection against sulfide and chloride attack
● Surface Quality: Mirror-like finish (Ra ≤0.8μm) supports high-definition lithographic printing
Formability: Yield strength 240-340MPa with excellent deep-drawing capability
Sustainability: Tin-free composition reduces environmental impact while maintaining recyclability
HJ GROUP introduces our Tinplate Sign Blanks—high-quality, unprinted metal substrates designed for creating durable, customizable signs, plaques, and markers. Crafted from electrolytic tinplate (SPTE) with precise control over thickness and surface finish, these blanks serve as the ideal base for applications ranging from decorative tin art to heavy-duty industrial signage. Their natural whiteboard state (uncoated, unprinted) offers unlimited potential for downstream processing, including printing, embossing, and painting
