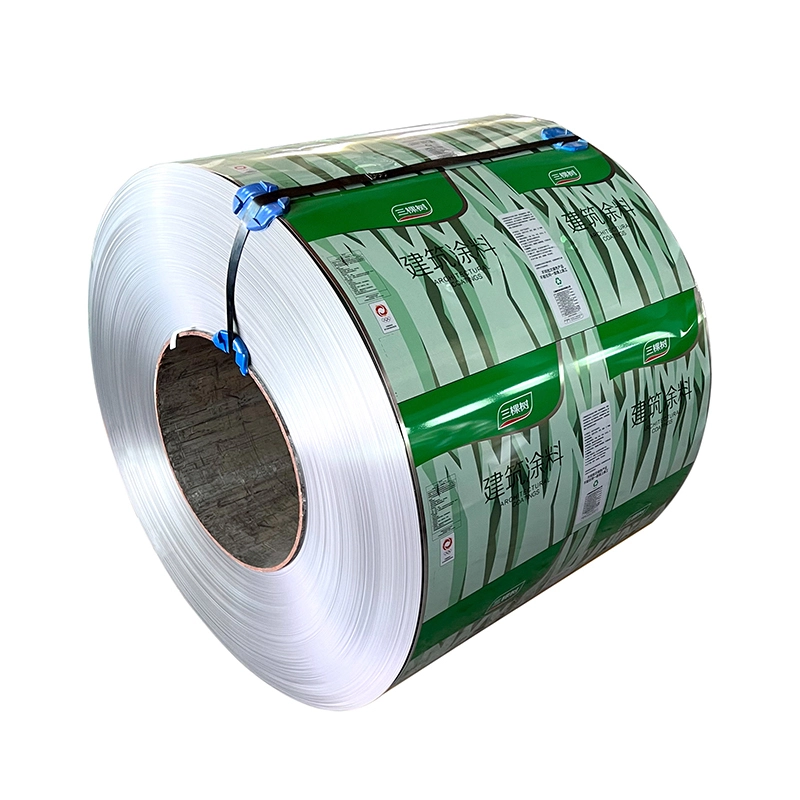

Laminated Tinplate Coil <000000> Sheet corrosion resistance safety
Thickness: 0.14-0.55mm
Width: 600-1050mm
Kleur: CMYK/ PMS
Levertiid: 20-40 days
Delivery Tolerance: +/-5%
Product features
Supply Capacity and Packaging
Supply Capacity | 1500MT Monthly |
Ferpakking | Standard seaworthy export packing or custom required |
Product Specifications
Produkt | Film Coated tinplate sheet | Thickness | 0.14-0.55mm |
Base Metal | ETP,TFS or cold-rolled steel sheet | Width | 600-1050mm |
Film Type | PET,PP or other films | Annealing | BA or CA |
Merk | HJ GROUP,Since 1993 | Temper | T1-T5, DR7-DR9 |
Oanfraach | Food or other industry cans | Ôfdrukke | CMYK off-set printing |
Kleur | CMYK/ PMS | Origin | Sina |
Levertiid | 20-40 days | MOQ | 25MT |
Delivery Tolerance | +/-5% | HS code | 721070 |
Remark | Temper Grade | Hardness (HR30T) | Yield Strength (Mpa) | |
Single
| T-1 | TS230 | 49 ± 3 | 230 ±50 |
T-2 | TS245 | 53 ± 3 | 245 ±50 | |
T-2.5 | TS260 | 55 ± 3 | 260 ±50 | |
T-3 | TS275 | 57 ± 3 | 275 ±50 | |
T-3.5 | TS290 | 59 ± 3 | 290 ±50 | |
T-4 | TH415 | 61 ± 3 | 415 ±50 | |
T-5 | TH435 | 65 ± 3 | 435 ±50 | |
Double
| DR-7M | TH520 | 71 ± 5 | 520 ±50 |
DR-8 | TH550 | 73 ± 5 | 550 ±50 | |
DR-8M | TH580 | 73 ± 5 | 580 ±50 | |
DR-9 | TH620 | 76 ± 5 | 620 ±50 | |
DR-9M | - | 77 ± 5 | 660 ±50 | |
DR-10 | - | 80 ± 5 | 690 ±50 | |
Ûnderdiel | Former Coating | Coating Weight | Nominal Coating Weight | Minimum average |
Designation | Code | (g/m2) | (g/m2) | |
Equally Coated | 10# | 1.1/ 1.1 | 1.1/ 1.1 | 0.9/ 0.9 |
20# | 2.2/ 2.2 | 2.2/ 2.2 | 1.8/ 1.8 | |
25# | 2.8/ 2.8 | 2.8/ 2.8 | 2.5/ 2.5 | |
50# | 5.6/ 5.6 | 5.6/ 5.6 | 5.2/ 5.2 | |
75# | 8.4/ 8.4 | 8.4/ 8.4 | 7.8/ 7.8 | |
100# | 11.2/ 11.2 | 11.2/ 11.2 | 10.1/ 10.1 | |
Differentially Coated | 25#/ 10# | 2.8/ 1.1 | 2.8/ 1.1 | 2.5/ 0.9 |
50#/ 10# | 5.6/ 1.1 | 5.6/ 1.1 | 5.2/ 0.9 | |
50#/ 25# | 5.6/ 2.8 | 5.6/ 2.8 | 5.2/ 2.5 | |
75#/ 25# | 8.4/ 2.8 | 8.4/ 2.8 | 7.8/ 2.5 | |
75#/ 50# | 8.4/ 5.6 | 8.4/ 5.6 | 7.8/ 5.2 | |
100#/ 25# | 11.2/ 2.8 | 11.2/ 2.8 | 10.1/ 2.5 | |
100#/ 50# | 11.2/ 5.6 | 11.2/ 5.6 | 10.1/ 5.2 | |
100#/ 75# | 11.2/ 8.4 | 11.2/ 8.4 | 10.1/ 7.8 | |
125#/ 50# | 15.1/ 5.6 | 15.1/ 5.6 | 13.9/ 5.2 |
Produkt werjefte
HJ GROUP leverages 28 state-of-the-art coating lines equipped with cutting-edge electrolytic tinplate (ETP) and tin-free steel (TFS) coating technologies to deliver tailored solutions for global brands. Our precision-engineered coatings enhance both performance and aesthetics, ensuring compliance with the highest industry standards
HJ GROUP leads the industry with advanced electrolytic chromium coating technology, delivering high-performance TFS for demanding global markets:
Key Features
● Corrosion Resistance: Chromium oxide layer (0.2-0.5g/m²) provides superior protection against sulfide and chloride attack
● Surface Quality: Mirror-like finish (Ra ≤0.8μm) supports high-definition lithographic printing
Formability: Yield strength 240-340MPa with excellent deep-drawing capability
Sustainability: Tin-free composition reduces environmental impact while maintaining recyclability
HJ GROUP's premium TMBP is a cold-rolled, uncoated steel sheet designed for precision applications. Manufactured using advanced low-carbon steel formulations and state-of-the-art annealing processes
