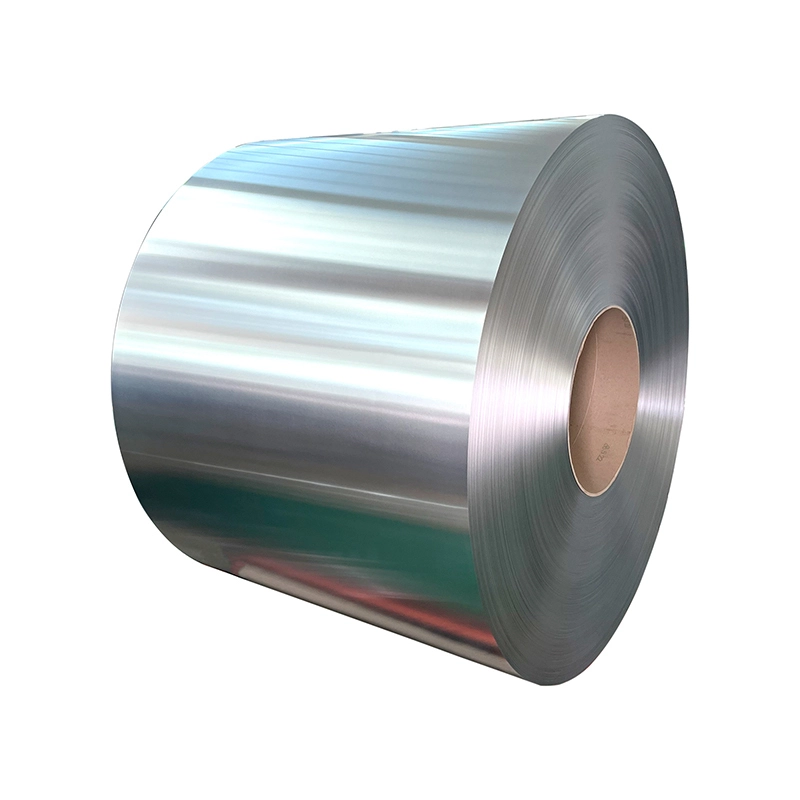

Electrolytic Tin Free Steel (TFS)/Electrolytic Chromium Coated Steel (ECCS)
Electrolytic Chromium Coated Steel (ECCS)/Tin-Free Steel (TFS)
HJ GROUP leads the industry with advanced electrolytic chromium coating technology, delivering high-performance TFS for demanding global markets:
Key Features
● Corrosion Resistance: Chromium oxide layer (0.2-0.5g/m²) provides superior protection against sulfide and chloride attack
● Surface Quality: Mirror-like finish (Ra ≤0.8μm) supports high-definition lithographic printing
● Formability: Yield strength 240-340MPa with excellent deep-drawing capability
● Sustainability: Tin-free composition reduces environmental impact while maintaining recyclability
Applications
1. Fuel tank liners, exhaust parts, and underbody shields
2. Chromium oxide coating offers 1000+ hours of salt spray resistance in harsh environments
1. Roofing panels, siding, and HVAC ducts
2. UV-resistant coatings ensure 20+ years of outdoor durability with minimal maintenance
1. Chemical drums, lubricant containers, and medical device packaging
2. FDA-approved coatings prevent contamination in sensitive applications
Technical Specifications
Supply Capacity and Packaging
|
Supply Capacity |
1500MT Monthly |
|
Packaging |
Standard seaworthy export packing or custom required |
Product Specifications
|
Brand |
HJ GROUP,Since 1993 |
Temper |
T1-T5, DR7-DR9 |
|
Application |
Food or other industry cans |
|
CMYK off-set printing |
|
Color |
CMYK/ PMS |
Origin |
China |
|
Delivery Time |
20-40 days |
MOQ |
25MT |
|
Delivery Tolerance |
+/-5% |
HS code |
721050 |
|
Item |
Coils |
Sheet |
Tolerance |
|
Annealing |
BA/ CA |
BA/ CA |
- |
|
Thickness |
0.13 - 0.55 mm |
0.13 - 0.55 mm |
±3% |
|
Temper |
T1-T5, DR8, DR9 |
T1-T5, DR8, DR9 |
- |
|
Width |
700 - 1,200mm |
700 - 1,200 mm |
-0/+2 mm |
|
Length |
- |
500 - 1,200 mm |
-0/+2 mm |
|
Weight |
3-10 MT per coil |
2.5 MT max per bundle |
±0.3% |
|
Inner Diameter |
420/ 508 mm |
- |
±10 mm |
|
ETP Coating |
1.1-15.1g/m² (differential coating mark available) |
||
|
TFS Coating |
Metal chromium layer 50-150 mg/m², chromium oxide layer 5-35 mg/m² |
||
|
Type |
Main Uses |
Features |
|
Bright |
General purpose cans |
Finishing tin, with a bright shine |
|
Matt |
Crown cork |
Matte finish without shine, with electrolytically deposited |
|
Silver |
Cans for different applications, |
Finish with melted tin produced using a special treatment |
|
Stone |
General use cans |
Finish with melted tin, produced on the base metal, with |
|
Temper grade |
Hardness |
Yield strength |
|||
|
GB/ T |
JIS |
ASTM |
EN |
(HR30T) |
(Mpa) |
|
T-1 |
T-1 |
T-1(T49) |
TS230 |
49±3 |
230±50 |
|
T-2 |
T-2 |
T-2(T53) |
TS245 |
53±3 |
245±50 |
|
T-2.5 |
T-2.5 |
- |
TS260 |
55±3 |
260±50 |
|
T-3 |
T-3 |
T-3(T57) |
TS275 |
57±3 |
275±50 |
|
T-3.5 |
- |
- |
TS290 |
59±3 |
290±50 |
|
T-4 |
T-4 |
T-4(T61) |
TH415 |
61±3 |
415±50 |
|
T-5 |
T-5 |
T-5(T65) |
TH435 |
65±3 |
435±50 |
|
DR-7M |
- |
DR-7.5 |
TH520 |
71±5 |
520±50 |
|
DR-8 |
DR-8 |
DR-8 |
TH550 |
73±5 |
550±50 |
|
DR-8M |
- |
DR-8.5 |
TH580 |
73±5 |
580±50 |
|
DR-9 |
DR-9 |
DR-9 |
TH620 |
76±5 |
620±50 |
|
DR-9M |
DR-9M |
DR-9.5 |
- |
77±5 |
660±50 |
|
DR-10 |
DR-10 |
- |
- |
80±5 |
690±50 |
