Tinplate Bottom Ends Series FDA-Compliant Bottom Ends
The "Tinplate Bottom Ends Series" features high-quality tinplate components designed for durability and versatility in various applications. These expertly crafted bottom ends provide a reliable and secure closure for containers, ensuring product integrity while maintaining a sleek and professional appearance.
Parole chiave
● Tinplate Bottom Ends, Food Can Seals, Aerosol Packaging Solutions, Hermetic Sealing, FDA-Compliant Bottom Ends, Food Can Ends, Sustainable Packaging
●
Classificazione:
Bottom Ends
Industry-Leading Performance
1.HJ-T5® Tinplate: Cold-rolled steel substrate (0.18-0.50mm) with 2.8/2.8g/m² electrolytic tin coating (ASTM A623 compliant)
2.Smart Surface Tech: Micro-groove texture design enhances coating adhesion by 30% vs. conventional ends
1. Withstands internal pressure up to 1.2MPa (aerosol applications)
2. 0.01mm flange flatness tolerance (exceeds ISO 11949:2016)
1.ECO-Tinning® Process: 35% reduced tin consumption vs. industry standard
2. Closed-loop water recycling system (140m³/day capacity)
3. KBA Clean Air System
1. 100% automated optical inspection (AOI) with 0.2μm defect detection
2.Real-time thickness monitoring (XRF coating analyzer)
Why Choose HJ GROUP’s Bottom Ends?
Application Engineering
| Market | HJ Solution | Technical Edge |
| Food & Beverage | Laser-optimized curl profile | 360° hermetic sealing for 60-month shelf life |
| Aerosols | Triple-seam reinforcement technology | 90kPa pressure retention (EN 14806 validated) |
| Pet Nutrition | Anti-corrosion inner coating (BPA-NI*) | H2S resistance ≤0.5ppm (ASTM G67 compliant) |
| Specialty Cans | Custom-drawn configurations (φ52-153mm) | 0.08mm thickness variation control |

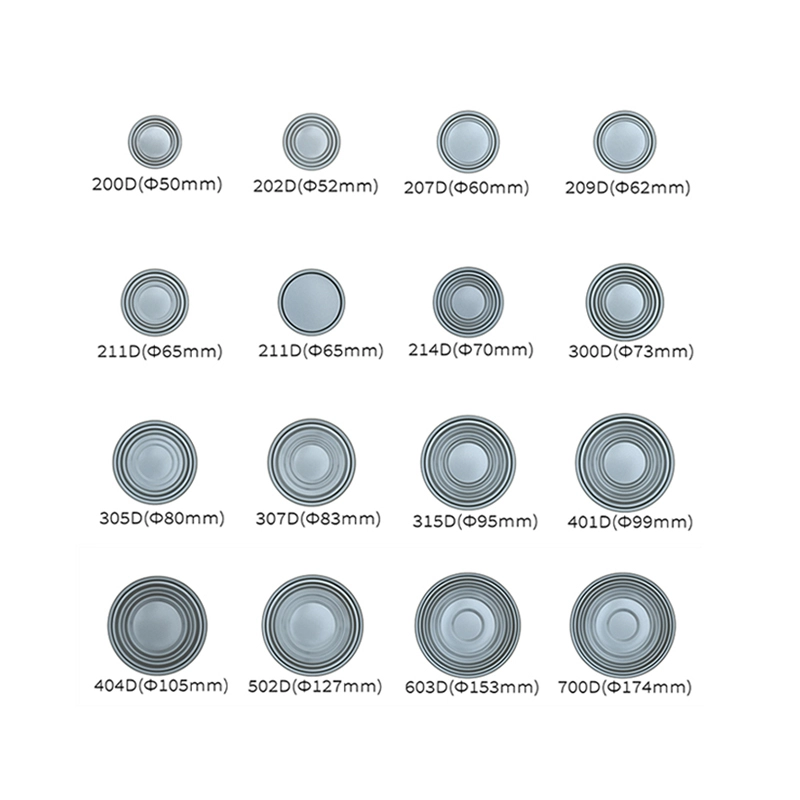

Some Popular Product Specifications
| EASY OPEN ENDS(EOE)/Tin Lids/Can Ends | ||||||
| Modello | Can Diameter(mm) | Thickness(mm) | Coating Available | Materiale | Stampa | Applicazione |
| 200D | Φ49.5 | 0.18 |
Outside Coating:
Clear /Golden Lacquer,or custom Inside Coating: Golden, White Enamel, Aluminized. (BPA-IN),or custom | ETP or TFS, Bao Steel guaranteed. | With or Without Instruction, Lithography | For All Food Cans with Vegetable, Fruits, Meat, Sea Food, Milk, Oil and others. |
| 202D | Φ52 | 0.18 | ||||
| 207D | Φ60 | 0.18 | ||||
| 209D | Φ62 | 0.18 | ||||
| 211D | Φ65 | 0.18 | ||||
| 214D | Φ70 | 0.19 | ||||
| 300D | Φ73 | 0.19 | ||||
| 305D | Φ80 | 0.2 | ||||
| 307D | Φ83 | 0.2 | ||||
| 315D | Φ95 | 0.21 | ||||
| 401D | Φ99 | 0.22 | ||||
| 404D | Φ105 | 0.22 | ||||
| 502D | Φ127 | |||||
| 603D | Φ153 | 0.26 | ||||
| 700D | Φ174 | 0.26 | ||||
| Remark | Temper Grade | Typical Application | ||
| JIS G3303:2008 | ASTM A623M | EN10202:2001 | ||
| ASTM A624M | ||||
| ASTM A625M | ||||
| ASTM A626M | ||||
|
Single
Reduced (SR) | T-1 | T49 | TS230 | Drawn and ironed cans, nozzles, spouts, closures, mounting cups, oil filters. |
| T-2 | T53 | TS245 | Ring and plugs, dome tops, closures, shallow drawn parts. Drawing cans, bodies,ends for large can. | |
| T-2.5 | T54 | TS260 | Battery shells, small can ends and bodies | |
| T-3 | T57 | TS275 | Top and bottom of cans, can ends and bodies, large diameter closures, crown caps. | |
| T-3.5 | T59 | TS290 | General use, pail ends,pail top caps, 18L, 4L | |
| T-4 | T61 | TH415 | Can bodies and ends, crown caps, closures.Bodies and ends for small can. | |
| T-5 | T65 | TH435 | Can ends and bodies requiring intensity.Bodies and ends for small can. | |
|
Double
Reduced (DR) | DR-7M | T71 | TH520 | DRD bodies, dome, Lug cap & 3 piece bodies |
| DR-8 | T72 | TH550 | DRD bodies, end, Lug cap & 3 piece bodies | |
| DR-8M | T73 | TH580 | ||
| DR-9 | T75 | TH620 |
DRD bodies, Lug cap & 3 piece bodies
Thinner gauge body, end, DRD cans, caps. | |
| DR-9M | T76 | - | ||
| DR-10 | - | - |
DRD bodies, Lug cap & 3 piece bodies
Thinner gauge body, end, DRD cans, caps. | |
Parole chiave: Tinplate Bottom Ends, Food Can Seals, Aerosol Packaging Solutions, Hermetic Sealing, FDA-Compliant Bottom Ends, Food Can Ends, Sustainable Packaging
Classificazione: Bottom Ends
● Double-seam welding technology for airtight and tamper-evident closure
● Raised flange design compatible with automated filling lines
● UV-resistant lacquer finish to prevent discoloration
● Manual or machine-applied options
1. Tinplate Paint Can Top Lid
2. Tinplate Paint Can Bottom Plate
Technical Innovations
● Hydroforming process ensures 100% leak-proof performance
● Anti-slip embossing for secure stacking
● Edge rounding treatment to eliminate sharp edges
Keywords
● Canned Food Easy Open End, Tinplate EOE, Food Packaging Solutions, Hermetic Sealing, FDA-Compliant EOE, Sustainable Packaging，Easy - opening can ends，Quick - open can ends，Pull - top ends，Pop - top ends，Pop-Top Closures，Tear-Notch Ends，Easy-Open Lids，Score-Line Lids，Easy-Open Lids
● Classification: Easy Open Ends
● Uniform thickness distribution for load-bearing capacity
● Integrated bead reinforcement to prevent deformation
● Food-grade lacquer lining for compatibility with sensitive formulations
● Customizable flange configurations
HJ GROUP introduces our Tinplate Sign Blanks—high-quality, unprinted metal substrates designed for creating durable, customizable signs, plaques, and markers. Crafted from electrolytic tinplate (SPTE) with precise control over thickness and surface finish, these blanks serve as the ideal base for applications ranging from decorative tin art to heavy-duty industrial signage. Their natural whiteboard state (uncoated, unprinted) offers unlimited potential for downstream processing, including printing, embossing, and painting
